Abstract

On first glance, the toaster looks like a toaster of the classic 1950s era, complete with polished aluminum sides. Inside, however, is a completely different story. In an external logic box 1 is a microcontroller that processes the sensor input and generates appropriate responses.

Sensors include a motion sensor to detect a toast-hungry person; photoresistors to detect the presence of bread to be toasted; and a temperature sensor to measure the energy transmitted to the bread while toasting. For the user interface, there is speech recognition and voice response. The speech recognition allows the user to simply speak commands to the toaster. The voice response module provides friendly feedback to the user based upon the user's selection.

To ensure the safety of the toast connoisseur, the power lines in the toaster are properly insulated. Additionally, to ensure the safety of the toaster, the microcontroller will be shielded from the line current switch by external circuitry.

Status

Problem Description

The solution we propose is to use a voice activated user interface, where the food preparing device is controlled by commands spoken by the Computer Scientist. In turn, the food preparing device will also respond to the Computer Scientist with prerecorded voice clips. The typical Computer Scientist conducts most of his or her correspondence via electronic mail, so the vocal cords are hardly stressed. The voice user interface is the best.

As a prototype for this new user interface, we have designed and built one of the simpler food preparing devices under the new paradigm: we have constructed a Talking Toaster.

Project Specification

Be able to make toast

As a toaster, this was of the highest priority.

Have speech recognition

Typical Computer Scientists spend their lives typing away at a keyboard or wirewrapping components together. The last thing they would like to do at home is have to push a lever to make toast.

Have voice response

Another behavior of the typical Computer Scientist is to watch some light turn on or off to indicate some behavior. Again, it would be nice if the Computer Scientist could simply listen to the toaster for feedback.

Have toast quality monitors

Making toast isn't easy. The toasting chamber must be heated to just the right temperature before the toast is ready. And once toast has been made, the toaster must cool off before making more toast. There must be a way of monitoring these conditions inside the toaster.

Be modular

Being modular doesn't help the user much, but it is a major design win for the design team of Chris and Corey. If each component of the toaster is modular (the sensors, the actuators, the speech and voice systems, et al), then these components may be designed, built, and debugged independently of one another. While Corey is debugging the speech recognition system, Chris could be designing the sensor input system.

Another big win from modularity is the debugging of the final assembled system. Given that each component had been tested and debugged on its own, if the final assembly did not work, we could concentrate our debugging effort on the interconnection of each component. Further, we could add components one by one to the final assembly, reducing the number of interconnections that needed to be checked should something go wrong.

Project Design Description

Voice Interface System

While designing and testing these systems, we noticed that the voice clips played back sounded noisy. Through some experiments with an oscilloscope, we determined that both the power supply and evaluation board (which housed the microcontroller during initial prototyping) were electronically noisy. To deaden this noise, bypass filter capacitors (1000mF) were placed from power to ground near the voice response and speech recognition chips.

Voice Response
The voice response subsystem was implemented with an Information Storage Devices' ISD1000A analog memory chip. This chip allowed for up to 20 seconds of response to be stored for playback. Further, the storage was nonvolatile, so no battery backup was necessary.

There were two aspects of the voice response system. The first was playing responses back at the appropriate times. The second was recording the responses to be used in the toaster. Because the responses are not to be changed by the user, there is no recording capability in the toaster's circuit. This greatly simplifies the circuit, mainly because the play/record pin on the voice chip may be permanently tied to play. The other alternative, where the microcontroller sets and clears the play/record pin, is troublesome during debugging because the microcontroller may hang and accidentally assert the record signal and erase the voice chip.

The play-only circuit using the ISD1000A chip may be found in the upper right corner of the Main Controller Logic Board schematic in Appendix A. To specify which voice clip to play, the microcontroller sends an 8-bit address out on its port B. To play the voice clip, the microcontroller pulses the ISD1000A's chip enable (CE) signal using port C[7]. To signal that the end of the message has been reached, the ISD1000A pulses the end of message pin (EOM) for 16 milliseconds.

The recording circuit is not pictured, but is not any more complex than what is shown. The only changes are the addition of an electret microphone and some passive components on the MIC line, and the microcontroller driving the play/record (P/R) pin.

To experiment with the voice response system, an assembly code module was written that interfaces the microcontroller to the ISD1000A. Later in the construction of the toaster, this module became quite valuable as an instrument with which to record the voice responses. To aid in debugging, the ISD1000A driver module was written using the same microcontroller ports as would be used in the final design. That is, no wires had to be moved, etc., when first debugging the entire design, and then verifying just the voice response system.

Speech Recognition
The speech recognition subsystem was built using Hualon Microelectronics Corporation's HM2007L speech recognition chip. This chip allowed for words to be recognized from a vocabulary of up to 40 1-second long words. The vocabulary was stored on an external 8K SRAM. This SRAM was not powered by a battery, so the vocabulary was lost when the toaster was unplugged. While this may not be ideal for the Computer Scientist, this removed a design constraint that otherwise would have hampered the project.

To use the speech recognition system of the HM2007L, the user must train their voice prints on the chip. In the current version of TOS, the user is instructed on how to do this when the toaster is first plugged in. For each word that is to be recognized, the microcontroller asks the user to speak that word. Because the user may say the word differently (i.e., with slightly different inflections, etc.), the user is asked to say the word more than once (usually three times). For each time the user says the word, the HM2007L integrates this word into a neural network (this network is stored in the off-chip SRAM). Later, in recognition mode, the HM2007L tries to match the spoken word against other words in its neural net. If a match is made, the index of that word in the vocabulary is returned. If no match is found, or if the user spoke too quickly or too slowly, an appropriate error code is returned.

Thus, the HM2007L does not recognize a spoken word as an actual word, but rather as sounding like a word that it knows about. The HM2007L has no a priori knowledge of what the word 'toast' should sound like.

The implementation of the speech recognition system was by far the most difficult engineering feat in the entire project. The chip came with a data sheet, but the information contained therein was in many instances unclear and even incorrect. The distributor of the chips had no experience with using the chips in CPU mode 3, so we were on our own. Fortunately, after two weeks of intensive experimenting and designing, we had an understanding of the basic program flow required to train and recognize words.

The HM2007L is a 52-pin PLCC chip, with a 48-pin DIP counterpart, the HM2007P, and a bare-pad version, simply HM2007. The HM2007L has 4 I/O ports, a microphone system, and several control pins. To communicate with the 8K SRAM, there is a 13-bit address bus and a 8-bit data bus (two of the four I/O ports), as well as a memory read/write pin and a memory enable pin. To communicate with the microcontroller, there is a 4-bit wide K-bus, used for passing data to and from the HM2007L, and a 3-bit S-bus, used for sending commands to the HM2007L (mainly commands to control the direction and meaning of the K-bus). Because we had only two of these chips, and no more were expected to be available from the manufacturer until after the end of the quarter, we took great care in protecting our chips from possible shorts. The S-bus and K-bus were connected to the microcontroller's C port via 10kOhm resistors. If both chips tried to drive the lines at different logic values, at least there would be no direct short through the chips.

Like the ISD1000A, a separate assembly code module was written to experiment and debug the speech recognition chip. And like its counterpart with the ISD1000A, this module was invaluable in debugging the full prototype.

Sensor and Devices System

The next issue was modularity. From the start, easy access to the toaster's working parts had to be engineered into the design to facilitate easy debugging and experimentation. Different positions for the temperature and bread sensors were tried to seek the optimal position. The motor used to raise and lower the bread platform needed to sit in exactly the right position.

To aid in this modularity issue, a quick-release toaster cover was fabricated. This involved using some attachment screws on the toaster handles and removing excess metal from the chrome cover. The feet of the toaster were fixed to the toaster directly, as opposed to being fixed to the chrome cover. The toaster, in turn, was secured to the external logic box by four thumb screws. In total, these modifications allowed us to debug the entire design both with and without the toaster, depending upon what was easier at the time.

Temperature Sensor
The first sensor installed was the temperature sensor. The temperature sensor sampled the current temperature inside the toaster, which was read through the A/D port on the microcontroller. When a threshold temperature was reached (determined by the toast setting the user had indicated: light, medium, or dark), the microcontroller would raise the bread platform.

The temperature sensing device we used was Analog Device's AD590J, a temperature transducer. The particular part we used was an integrated circuit mounted in a metal can (AD590JH). The AD590J reported the temperature by outputting a current in mA equal to the temperature in degrees Kelvin 4. Thus, at room temperature (298 K), the AD590J would output 298mA of current.

The operating range of the AD590J is between 218K and 423K (-55 deg and 150 deg C). While this is a wide range extending into high temperatures, the interior of the toaster raises far hotter than this. Through experimenting, we found the best position for the sensor, one where it did not reach its upper limit before the toast was done, was just beneath the toaster.

Once the temperature sensor was mounted, and toasting tests were begun, we began to notice erratic behavior from the AD590J. As it turned out, the A/D port on the microcontroller was experiencing terrible noise every 32ms, just when the servo motor's controlling signal was reset. The noise manifested itself as ringing in the lower two or three bits of the A/D channel. While this should not have much of an impact, it did in this case, because we had lower resolution on our temperature sensor (see below). Thus, we needed a fix. The solution: simply ignore temperature readings during this noisy period. Because the noise lasted for less than 12ms at every timer rollover, we could simply look at the microcontroller's timer and ignore the data if the counter were less than 25k.

Bread Sensor
In order to make toast, the toaster must assure that there is bread loaded. To check the bread loaded condition, we mounted photoresistors 5 on the external logic box, looking up through the bread slots in the toaster. Under normal conditions, light in the room would filter through the toaster and strike the photoresistors, keeping their resistance at some nominal level. When bread is inserted, the light no longer makes it all the way down to the photoresistors, and their resistance changes. Using the circuit found in Appendix A (SDS Controller board), the change in resistance was converted into a change of voltage, which was in turn read by the microcontroller's A/D port.

Motion Sensor
The motion sensor turned out to be easier than was originally planned. In the final version of the toaster, a motion sensor from a security porch light was used. The motion sensor was a remote unit that ran on two 9v batteries. When the unit detected motion, it would send a radio signal to a receiver in the toaster, which would close a relay, raising a signal on the microcontroller. The microcontroller would respond accordingly, and set a flag. The problem is that, once motion has been detected, the relay remains closed until the motion stops, and then for 12 seconds after that. During that time, the toaster should not be assuming that it needs to react to the motion. Thus, a flag is set and not cleared until the relay has been opened again.

Bread Platform
In parallel with the development of the sensors was the work on the bread platform. After many false starts, including a long and windy path of learning how stepper motors work, we made the observation that a servo motor would do exactly the right job for us. Where a stepper (or other non-servo motor) would easily be driven by the microcontroller, there would be a need for feedback in the toaster's up and down positions. That is, when the bread platform reached its maximum or minimum height, the microcontroller would have to be interrupted. This would involve another two or three I/O pins that we could not afford. On the other hand, using a servo would eliminate the need for this feedback. By simply sending an accurate pulse-width modulated (PWM) signal to the motor, the shaft would turn to exactly the right position, and hold there as long as the PWM signal was held.

SDS Controller Board
All the sensors mounted in and on the external logic box needed some way to be powered and/or interfaced into the microcontroller. Because the microcontroller and other ICs were wirewrapped, a separate board for the SDS seemed most logical. Thus, we have the SDS Controller Board. A schematic for the SDS Controller Board appears in Appendix A.

Once again recalling that modularity was a key design factor, we incorporated that into the SDS Controller Board. To interface to the Main Controller Logic Board, the SDS had an 8-conductor cable terminated with an RJ-45 connector. The Main Controller Logic Board had an RJ-45 socket wirewrapped accordingly, and the two could easily be connected and disconnected as need be.

Besides offering a convenient method of connecting the sensors to the wirewrap board, the SDS Controller Board also generated the high and low reference voltages for the microcontroller's A/D converter. The A/D converter required at least 2.5v between the low and high references, so we built a voltage divider that offered 2.6v difference. This was much more than we would have liked; the AD590J had a voltage swing of 1 volt. To make the case worse, we were interested in only a fraction of the temperature sensor's range. The difference between when light toast is done and when dark toast is done is only a few degrees. Unfortunately, due to time constraints, we could not apply any remedy for this situation, and had to suffice with a few bits of resolution on the temperature sensor.

Toaster Operating System

The basic flow of logic in TOS is as follows:
Initialize
    Has the user said 'toast'?
    Has there been movement?
If the user asked for toast, or if there has been movement, check to see if there is bread in the toaster. If there is no bread, ask the user to load the toaster and try again. Else, ask the user how light (light, medium, or dark) they would like their toast. Toast the bread, and hail the user when its all done. Return to start.

For each subsystem (speech recognition, voice response, motor control, sensors), a separate driver module was written that tested that component. As the components were completed, their drivers were added to TOS. This allowed for TOS to grow in parallel with the design work on the rest of the toaster. This parallelism was a big win for us, as it kept both of us busy, not waiting for one another.

Prototyping

This prototyping method also lead to the use of the EVB's Buffalo functions for displaying information on the terminal, and for setting up interrupt service routines. When the TOS was converted to be run on the wirewrapped Main Controller Logic Board, with its embedded MC68HC11E2 microcontroller, the code had to be modified (this lead to the e2 extension for versions of TOS that are wirewrap-board specific). In particular, the functions provided by buffalo were no longer available, and had to be "stubbed out". This is what we see by the NULLFCN in TOS v1.6e2. Also, the origin of the code, data, and stack were different on the 'E2 chip. Code started at address $F800. The stack had to be explicitly loaded, so the address $0047 (inside the 256 bytes of on-chip RAM) was used. Stack grows down, so there are 71 bytes of stack space available in this configuration. For global data, the origin was selected as $0048, just above the stack.

One more change necessary when porting TOS to the 'E2 chip was loading in the interrupt service routines. This is taken care of in a strange manner on the evaluation board, through the pseudo-vectors. On the 'E2 chip, we had to explicitly program the reset and IC1 ISRs in the assembly source code.

Retrospective

We also learned that too much planning can be as bad as too little planning. From the start, we had tried to specify certain components, like what type of motor to use for the bread platform. By attempting to nail these components down early on, we locked ourselves into a mind set that other parts would not due. This was particularly true for the bread platform motor. We had convinced ourselves that a stepper motor with a worm gear was the way to go. In reality, this method was fundamentally flawed, and a servo motor would be by far a wiser choice. We spent at least a week and a half chasing down this blind alley, mainly because we took that long to realize that we had other options.

Another lesson that we learned has already been mentioned: planning for debugging by modularity. From the very start we had several smaller components in our design, and we could set our milestones based on the progress we made with each component. We could design, build, and debug these components each on our own, without needing to find a common time that we could share in the lab. And when it came time to mesh everything together, we had few variables to check. Each component was already known to be good, so all that's left is the few wires between the modules.

There were, of course, several little changes that we could have made, and we would have benefited from the foresight had it been available. Listed with respect to the module affected, they appear below.

Temperature Sensor
We had known all along that measuring the temperature and waiting for it to raise above a preset threshold was not the optimal solution. However, it gave us the easiest driver code: a simple polling loop watching the A/D port.

Given more time, we would have liked to re-implement the sensor to measure the differential temperature from when the toast making process begins. That is, after one slice of toast has been produced, and the toaster is still hot, the toaster would toast until the temperature raised by so many degrees, not simply until it reached an absolute temperature. Another method that we could have tried is to measure heat energy transmitted (the product of temperature and time).

Bread Platform
As we have lamented before, we spent a great deal of time investigating how a stepper motor works, when the right motor for the job was sitting idly in someone's cupboard. If we had realized much sooner that a servo was just what we were looking for, then maybe we could have avoided our last hour work marathon.

SDS
Much of the time in our last-hour work marathon was spent debugging the temperature sensor's driver software and support circuit. As things turn out, we were using A/D channel E[0] for the temperature sensor. However, E[0] has a 10kW resistance to it, while the other A/D ports have infinite resistance. This impacted our temperature sensor by drawing all the current being provided, as opposed to quietly measuring the voltage produced across the resistor in the circuit. We really wish we had known that E[0] was a bad idea from the start.

Speech Recognition
We're really glad that we opted for this user interface, as opposed to push buttons or even a simple clapper-type interface. It was a major challenge to determine how the speech recognition chip worked, but it was well worth it. We learned a lot about safe and unsafe experimental procedures, and how to test a chip for which there is exactly one backup. It also gave us a great deal of practice in writing assembly code for the microcontroller, a skill that will be valuable in the future.

Design Schematics

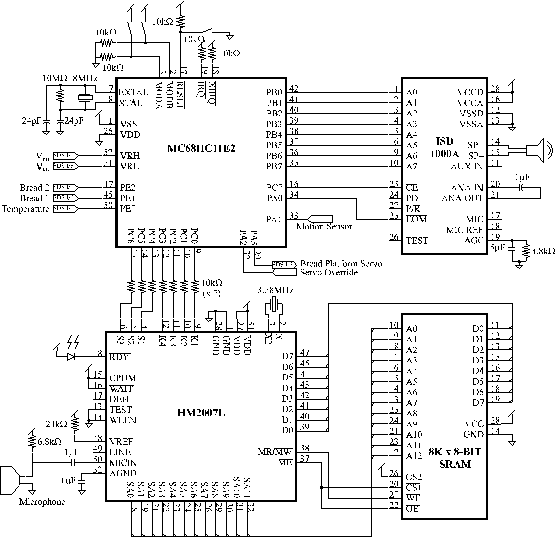

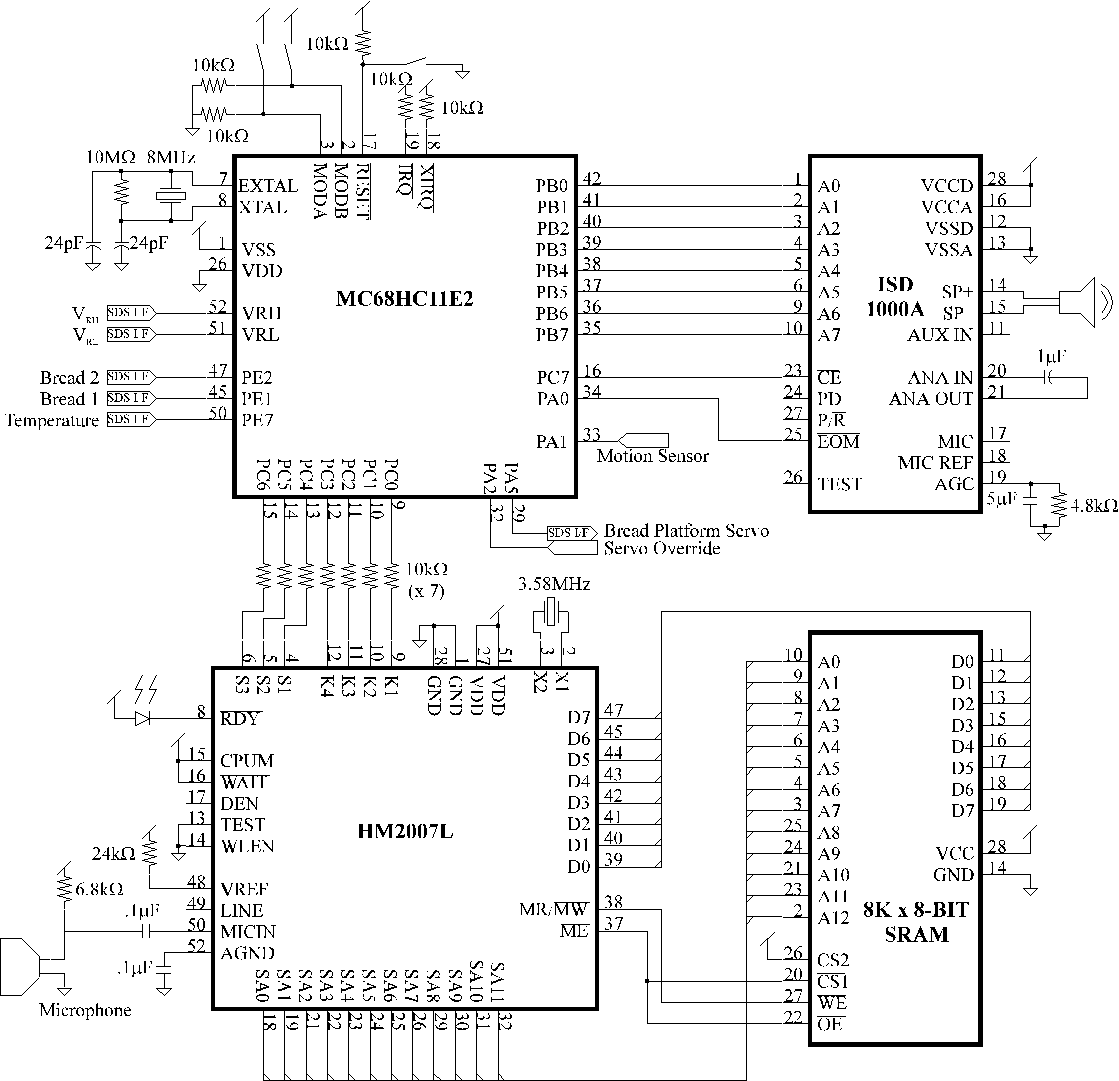

Main Controller Logic Board

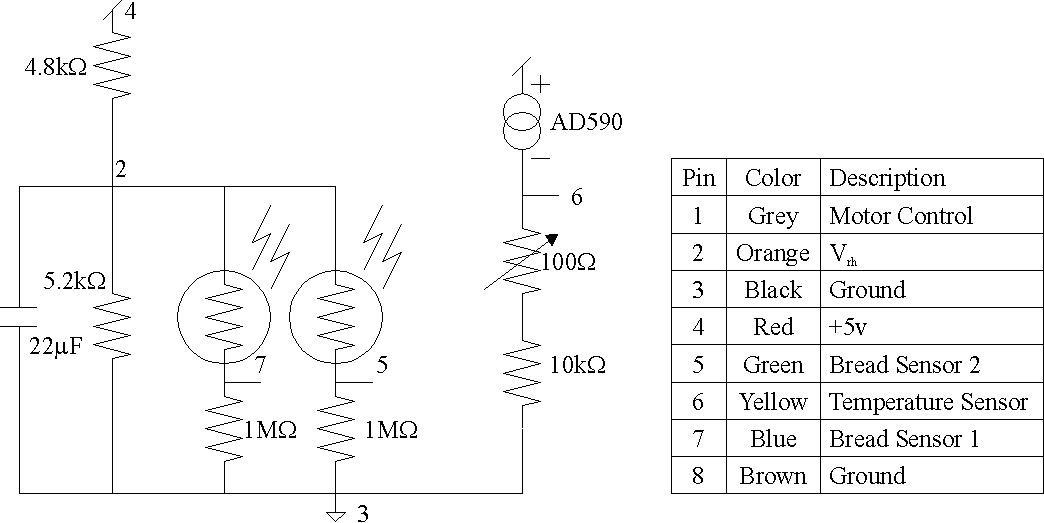

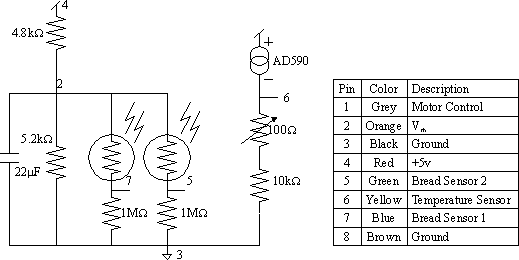

SDS Controller Logic Board

TOS v1.6e2

*************************************************
*
* Toaster Operating System
* Version 1.6e2
*
* (c) 1996 Corin Anderson and Chris Setter
*
* CSE 477, Spring Quarter, 1996
* University of Washington
*
*************************************************

********************************************************************
* Revision History
*
* 1.6e2	Fix applied to temperature sensor.  At timer overflows,
*	there is noise on the A/D ports, probably caused by the PWM
*	signal that's driving the toaster's servo.  This noise
*	manifests itself as a high frequency ring in the last two
*	bits of the temperature data.  This is a major problem
*	the difference between light and dark toast settings are
*	less than 3 bits apart.  The solution applied here is to
*	simply ignore the temperature sensor's reading during this
*	ringing period.  The ringing lasts no longer than about
*	12.5 ms, or about 25K e-cycles.  This solution solves the
*	problem.
*
* 1.5e2	Modified to be used without the evaluation board.
*	Modifications include:
*		** Globals are now at $0047
*		** Code is now at $F800
*		** RESET and IC1 interrupts are set with FDB
*		   statement
*		** Buffalo functions are replaced with NULLFCN
*
* 1.5	User Interface modified.  No more command stuff.  User
*	simply says "toast" and off things go.  Toaster has longer
*	responses.
*
*	Sensor code still being modified and tested.
*
*	New voice chip vocabulary
*
* 1.4	Code added to read and respond accordingly to the bread
*	and temperature sensors.
*
*	Also added code to prompt the user for toasting level.
*
*	Never functional.  Version bumped for new UI.
*
* 1.3	Reworked speech recognition code so the toaster won't try
*	to recognize its own voice (from the Say() routine).
*
*	Added code to audibly prompt the user to train words.  Also
*	added code to display the word on the terminal.  Both of
*	these functions use arrays of the voice clips and words.
*
*	New voice chip vocabulary
*
* 1.2	Interfaced TOS to Bread Platform servo motor.  The servo
*	requires a pulse width modulated (PWM) control signal to
*	position the shaft angle.  Thus, the output capture facility
*	is used.
*
*	For the safety of the toaster and of the user, there is a
*	servo override button on the toaster.  When this button is
*	pushed, the servo is swung up to its raise position.  This
*	still doesn't unlock the bread platform from the motor, but
*	at least this will open the contacts to the heating coils
*	and free the user's bread.
*
* 1.1	Added code to disregard speech matches that have too high
*	of a score.  With luck, this will eliminate false positives.
*	Unfortunately, this will also lead to false negatives.  But
*	that's usually easier to cope with.
*
* 1.0	First release of functional TOS.  Includes code for speech
*	recognition, voice response, and motion detection.  Speech
*	recognition is limited to about 5 words trained at startup.
*	Voice responses are tailored for the specific command: make
*	toast.
*
* 0.1	First incarnation of TOS.  Does not function properly.  Has
*	incorrect handling of voice response chip (ISD1000A).  Needs
*	substantial work to be functional.
*
*********************************************************************

*********************************************************************
*  Constant definitions for Speech Recognition chip
*  Bus connections for Speech Recognition chip
SBUS		EQU	$1003		S bus is C[6:4]
KBUS		EQU	$1003		K bus is C[3:0]

*  Bus bit mask
SMASK		EQU	%01110000	Middle 3 bits
KMASK		EQU	%00001111	Lower 4 bits

*  States for speech recognition chip
srNULL		EQU	%00000010	Null state
srRDSTATUS	EQU	%00000010	Read status from K bus
srRDOUTPUT	EQU	%00000011	Read output buffer from K bus
srWRINPUT	EQU	%00000100	Write intput buffer on K bus

*  Status codes
srRDYHI		EQU	%00000000	Ready for second (hi) nibble
srRDYVOICE	EQU	%00000001	Ready for voice input
srRDYCMD	EQU	%00000010	Ready to receive command
srRDYLO		EQU	%00000011	Ready for first (lo) nibble

*  Command codes
srCMDRECOG	EQU	%00000001	Recognize word
srCMDTRAIN	EQU	%00000010	Train a pattern
srCMDRESULT	EQU	%00000100	Read result and score
srCMDRESET	EQU	%00000111	Clear all patterns from HM2007

*  Result codes
srTOOSLOW	EQU	$55		Voice was too long (too slow)
srTOOFAST	EQU	$66		Voice was too short (too fast)
srNOTFOUND	EQU	$77		Voice was not found


********************************************************************
*  Constant definitions for general purpose

* Port data direction registers (offset from $1000)
REGBAS		EQU	$1000
DDRC		EQU	$07		Data direction for port C (0=Input, 1=Output)
OC1M		EQU	$0C		OC1 Action Mask register
OC1D		EQU	$0D		OC1 Action Data register
TIC1		EQU	$10		IC1 register (16 bits)
TOC1		EQU	$16		OC1 register (16 bits)
TOC3		EQU	$1A		OC3 register (16 bits)
TCTL1		EQU	$20		OM2,OL2;OM3,OL3;OM4,OL4;OM5,OL5
TCTL2		EQU	$21		-,-;EDG1B,EDG1A;EDG2B,EDG2A;EDG3B,EDG3A
TMSK1		EQU	$22		OC1I,OC2I,OC3I,OC4I,OC5I,IC1I,IC2I,IC3I
TFLG1		EQU	$23		OC1F,OC2F,OC3F,OC4F,OC5F,IC1F,IC2F,IC3F
*PVIC1		EQU	$00E8		EVB pseudo-vector for IC1
TMRREG		EQU	$0E		Timer counter register (16 bits)


* A/D controller and reading defines
ADCTL		EQU	$30
ADR1		EQU	$31
ADR2		EQU	$32
ADR3		EQU	$33
ADR4		EQU	$34
Option		EQU	$39

****************************************************************************
*  Voice clip indices
*								/* Voice response clips */
vLIKETOAST	EQU	%00000000				/* Would you like some toast? */
vTOAST		EQU	%00001100				/* toast */
vYES		EQU	%00010100				/* yes? */
vNO		EQU	%00011011				/* no */
vOKAY		EQU	%00100010				/* okay */
vHOWLIGHT	EQU	%00101001				/* how light? */
vLIGHT		EQU	%00110010				/* light */
vMEDIUM		EQU	%00111010				/* medium */
vDARK		EQU	%01000001				/* dark */
vUSING		EQU	%01001001				/* using setting *?
vEND		EQU	%01010011				/* end */
vLOWERING	EQU	%01011011				/* lowering */
vRAISING		EQU	%01100011				/* raising */
vDONE		EQU	%01101011				/* done */
vSLOWER		EQU	%01110010				/* slower */
vFASTER		EQU	%01111010				/* faster */
vWHAT		EQU	%10000010				/* I'm sorry, what? */
vPLSSAY		EQU	%10001101				/* Please say -- */
vNOBREAD		EQU	%10010110				/* I should toast what? */


****************************************************************************
*  Speech recognition indicies
*								/* Word Recognition indicies (bcd) */
wYES		EQU	$01					#define wYes		'01'
wNO		EQU	$02					#define wNo		'02'
wTOAST		EQU	$03					#define wToast		'03'
wLIGHT		EQU	$04
wMEDIUM		EQU	$05
wDARK		EQU	$06
wEND		EQU	$07					#define wEnd		'07'
wLASTWORD	EQU	$07					#define wLastWord	'07'

srMAXTRAIN	EQU	3					#define srMaxTrain	3
srTHRESH		EQU	$80					#define srThresh	0x40

*********************************************************************************
* I/O port mapping for voice chip and motion detection
VOCPORT		EQU	$1004		Port B
isdENBAR		EQU	$1003		Port C			port gPlayClip[0];
isdENMASK	EQU	%10000000	   Bit 7
isdEOM		EQU	$1000		Port A			port gEOM[0];
isdEOMMASK	EQU	%00000001	   Bit 0

MOTPORT		EQU	$1000		Port A			port gMotion[0];
MOTMASK		EQU	%00000010	   Bit 1


*********************************************************************************
* Bread Platform pulse widths and control data
OC3_OC1		EQU	%00100000				OC1 controls A[5]
OC3_CTL		EQU	%00100000				OC3 clears on compare
PW_RAISE		EQU	$0D80
PW_LOWER		EQU	$0480
BREAD_DLY	EQU	32

tLIGHT		EQU	$91					Treshold for light toast
tMEDIUM		EQU	$93					Treshold for medium toast
tDARK		EQU	$95					Treshold for dark toast

*********************************************************************************
*  Global Variables
		ORG	$0048
*  The only global variable.  And it could even go away if I wanted to use
*  input capture.  But I don't so it won't.  8)
motLASTST	RMB	1					Last known state of motion sensor
srINITED		RMB	1					1 == INIT_SR has been called, 0 otherwise
TOASTLEVEL	RMB	1					Toast level (threshold for temp IC)

***********************************************************************
*  Interrupt vectors, including RESET and IC1
		ORG	$FFFE					RESET:  jump to start of program
		FDB	MAIN
		ORG	$FFEE					IC1 ISR
		FDB	IC1ISR

		ORG	$F800
* If we're not on the EVB, pass all the Buffalo functions to NULLFCN.
NULLFCN		RTS

*  BUFFALO I/O routines
*  Must be defined here because they must *follow* NULLFCN's definition
*  The $FFxx addresses are the addresses of the functions when used with the EVB
OUTA		EQU	NULLFCN		$FFB8		Output ASCII character in A
OUT1BSP		EQU	NULLFCN		$FFBE		Output 1 byte in hex, followed by a space
OUT1BYT		EQU	NULLFCN		$FFBB		Output 1 byte in hex
OUTCRLF		EQU	NULLFCN		$FFC4		Output carriage return and line feed
OUTSTRG		EQU	NULLFCN		$FFC7		Output string terminated by $04, incl. CR/LF
OUTSTRG0		EQU	NULLFCN		$FFCA		Output string terminated by $0F, excl. CR/LF

***********************************************************************
*							void main(void)
*							{
*								int w;

MAIN		LDS	#$0047

		JSR	INIT					Init();

		LDAA	#'M
		JSR	OUTA
		JSR	OUTCRLF

*								while(1) {
MAINLOOP		LDAA	#'L
*		JSR	OUTA
*		JSR	OUTCRLF

		JSR	WORDRECOG					if (WordRecognized()) {
		BEQ	ML1

		JSR	GETWORD							w = GetWord();
		PSHA
		TSX
		JSR	OUT1BSP
		PULA
		SUBA	#wTOAST							if (w == wToast)
		BNE	MAINLOOP
		JSR	MAKETOAST							MakeToast();

		LDAA	#'/
		JSR	OUTA
		LDAA	#'P
		JSR	OUTA

		BRA	MAINLOOP
*									}

ML1		JSR	MOTDETECT					else if (MotionDetected()) {
		BEQ	MAINLOOP
		JSR	RESPONDMOT						RespondToMotion();
		BRA	MAINLOOP
*									}
*								}
*							}



***********************************************************************
*							void Init(void)
*							{
INIT		JSR	INIT_VR					InitVoiceResponse();
		JSR	INIT_SR					InitSpeechRecognition();
		JSR	INIT_BREAD

		CLRA
		STAA	motLASTST				gLastMotState = 0;

		RTS
*							}



****************************************************************************************
*							void InitSpeechRecognition(void)
*							{
INIT_SR		LDAB	#wLASTWORD				int i=wLastWord;
*								int j;

		CLRA						/* We're not fully initialized yet */
		STAA	srINITED

		JSR	srCLEAR					srClearPatterns();

*								/* i == Accumulator B */
*								/* j == Accumulator A */

*								/* Train vocabulary */
ISR4		TBA						while (i) {
		BEQ	ISR1
		LDAA	#srMAXTRAIN					j = srMaxTrain;
ISR3		BEQ	ISR2						while(j) {
		LDX	#ISR_MSG1						puts("Please train word: ");
		PSHA
		JSR	OUTSTRG

**		TBA								puts(words[i]);
**		ADDA	#'0
**		JSR	OUTA

		LDX	#srWORDS						/* X <= &words[0].s */
		PSHB
		DECB								/* words is 0-based */
		LSLB
		ABX								/* X <= &words[0].s + 2*i */
		LDX	0,X							/* X <= words[i].s */
		JSR	OUTSTRG
		PULB


		LDAA	#vPLSSAY
		JSR	SAY
		LDX	#vWORDS							/* X <= &words[0].v */
		ABX								/* X == &words[i].v */
		DEX								/* words is 0-based */
		LDAA	0,X							/* A <= words[i].v */
		JSR	SAY


		TBA								srTrainWord(i);
		JSR	srTRAINWORD

		PULA								j--;
		SUBA	#1
		BRA	ISR3						}

ISR2		SUBB	#1						i--;
		BRA	ISR4					}

*								/* Activate recognition circuit */
ISR1		LDAA	#srRDSTATUS				outs(srRdStatus);
		JSR	OUTS
ISR5		JSR	INST					while (inst() != srRdyCmd);
		SUBA	#srRDYCMD
		BNE	ISR5

		LDAA	#srWRINPUT				outs(srWrInput);
		JSR	OUTS
		LDAA	#srCMDRECOG				outk(srCmdRecog);
		JSR	OUTK
		JSR	INK					ink();

		LDAA	#1					/* We're initialized now */
		STAA	srINITED

		RTS
*							}



************************************************************************************
*							void InitVoiceResponse(void)
*							{
INIT_VR		LDX	#$1000
		BSET	isdENBAR,X isdENMASK			gISDEnableBar = 1;
		BSET	DDRC,X isdENMASK				/* Set pin as output */
		BSET	isdENBAR,X isdENMASK			gISDEnableBar = 1;

		RTS
*							}



*********************************************************************************
*							bool WordRecognized(void)
*							{
WORDRECOG	LDAA	#'W
*		JSR	OUTA
*		JSR	OUTCRLF


		LDAA	#srRDSTATUS				outs(srRdStatus);
		JSR	OUTS

		JSR	INST					st = inst();
		SUBA	#srRDYCMD				if (st == srRdyCmd) {
		BNE	WR1

*		JSR	BEGINRECOG

		LDAA	#1						return 1;
		RTS

*								} else
WR1		CLRA							return 0;
		RTS
*							}


***************************************************************************
BEGINRECOG	LDAA	#'B
*		JSR	OUTA
*		JSR	OUTCRLF

		LDAA	#srRDSTATUS					outs(srRdStatus);
		JSR	OUTS
BR1		JSR	INST						while (inst() != srRdyCmd);
		SUBA	#srRDYCMD
		BNE	BR1

		LDAA	#srWRINPUT					outs(srWrInput);
		JSR	OUTS
		LDAA	#srCMDRECOG					outk(srCmdRecog);
		JSR	OUTK
		JSR	INK						ink();

		LDAA	#20
BR2		NOP
		NOP
		SUBA	#1
		BNE	BR2

		LDAA	#srRDSTATUS					outs(srRdStatus);
		JSR	OUTS
		JSR	INST

		RTS


*************************************************************************
*							bcd GetWord(void)
*							{
*								bcd w;

GETWORD		LDAA	#'G
		JSR	OUTA
*		JSR	OUTCRLF

		LDAA	#srRDSTATUS				outs(srRdStatus);
		JSR	OUTS
GW1		JSR	INST					while(inst() != srRdyCmd);
		SUBA	#srRDYCMD
		BNE	GW1

		LDAA	#srWRINPUT				outs(srWrInput);
		JSR	OUTS
		LDAA	#srCMDRESULT				outk(srCmdResult);
		JSR	OUTK
		JSR	INK					ink();

*								/* Read which word was read */
		JSR	READLOHI				ReadLoHi(&w);
		PSHA

		TSX
		JSR	OUT1BSP

*								/* Read score (required) and throw away */
		JSR	READLOHI				ReadLoHi(NULL);

		PSHA
		TSX
		JSR	OUT1BSP

		JSR	BEGINRECOG

		PULB						/* B <= score */
		PULA						/* A <= word */
		SUBA	#srTOOFAST
		BNE	GW2
		LDAA	#vSLOWER
		JSR	SAY
		BRA	GETWORD
GW2		ADDA	#srTOOFAST
		SUBA	#srTOOSLOW
		BNE	GW3
		LDAA	#vFASTER
		JSR	SAY
		BRA	GETWORD
GW3		ADDA	#srTOOSLOW
		SUBA	#srNOTFOUND
		BNE	GW4
		LDAA	#vWHAT
		JSR	SAY
		BRA	GETWORD
GW4		ADDA	#srNOTFOUND				/* A is word (again) */
		PSHA
		TBA
		SUBA	#srTHRESH
		BLO	GW5
		PULA
		LDAA	#vWHAT
		JSR	SAY
		BRA	GETWORD


GW5		LDAA	#'/
		JSR	OUTA
		LDAA	#'G
		JSR	OUTA
		JSR	OUTCRLF

		PULA
		RTS						return w;
*							}



*****************************************************************************
*							void ReadLoHi(bcd *w)
*							{
READLOHI		LDAA	#'R
		JSR	OUTA
		LDAA	#'L
		JSR	OUTA
		LDAA	#'H
		JSR	OUTA
		JSR	OUTCRLF

		LDAA	#srRDSTATUS				outs(srRdStatus);
		JSR	OUTS
RLH1		JSR	INST					while (inst() != srRdyLo);
		SUBA	#srRDYLO
		BNE	RLH1

		LDAA	#srRDOUTPUT				outs(srRdOutput);
		JSR	OUTS
		JSR	INK					w->lo = ink();
		PSHA

		LDAA	#%101					outs(101);
		JSR	OUTS
		LDAA	#%001					outs(001);
		JSR	OUTS
		LDAA	#%000					outs(000);
		JSR	OUTS
		LDAA	#srRDSTATUS				outs(srRdStatus);
		JSR	OUTS
RLH2		JSR	INST					while(inst() != srRdyHi);
		SUBA	#srRDYHI
		BNE	RLH2

		LDAA	#srRDOUTPUT				outs(srRdOutput);
		JSR	OUTS
		JSR	INK					w->hi = ink();
		LSLA
		LSLA
		LSLA
		LSLA
		PULB
		ABA
		PSHA

		LDAA	#%101					outs(101);
		JSR	OUTS
		LDAA	#%001					outs(001);
		JSR	OUTS
		LDAA	#%000					outs(000);
		JSR	OUTS
		LDAA	#srRDSTATUS				outs(srRdStatus);
		JSR	OUTS
		JSR	INST					inst();

		PULA

		RTS
*							}



***********************************************************************************
*							void srTrainWord(bcd index)
*							{
srTRAINWORD	PSHA						/* Save index from register A */

		LDAA	#'T
		JSR	OUTA
		LDAA	#'W
		JSR	OUTA
		TSX
		JSR	OUT1BSP
		JSR	OUTCRLF

		LDAA	#srRDSTATUS				outs(ReadStatus);
		JSR	OUTS
TW_1		JSR	INST					while(inst() != ReadyForCommand);
		SUBA	#srRDYCMD
		BNE	TW_1

		LDAA	#srWRINPUT				outs(WriteInput);
		JSR	OUTS
		LDAA	#srCMDTRAIN				outk(CmdTrain);
		JSR	OUTK
		JSR	INK

		LDAA	#srRDSTATUS				outs(ReadStatus);
		JSR	OUTS
TW_2		JSR	INST					while(inst() != ReadyForLo);
		PSHA
		SUBA	#srRDYCMD
		BEQ	TW_CONFZD
		PULA
		SUBA	#srRDYLO
		BNE	TW_2

		LDAA	#srWRINPUT				outs(WriteInput);
		JSR	OUTS
		PULA
		PSHA
		ANDA	#$0F					outk(loDigit);
		JSR	OUTK
		JSR	INK

		LDAA	#srRDSTATUS				outs(ReadStatus);
		JSR	OUTS
TW_3		JSR	INST					while(inst() != ReadyForHi);
		SUBA	#srRDYHI
		BNE	TW_3

		LDAA	#srWRINPUT				outs(WriteInput);
		JSR	OUTS
		PULA
		LSRA
		LSRA
		LSRA
		LSRA
		ANDA	#$0F					outk(hiDigit);
		JSR	OUTK
		JSR	INK

		LDAA	#srRDSTATUS				outs(ReadStatus);
		JSR	OUTS
TW_4		JSR	INST					inst();
		SUBA	#srRDYCMD				while (inst() != ReadyCommand);	/* Wait for word */
		BNE	TW_4



		RTS

TW_CONFZD	PULA						/* Restore the stack! */
		LDX	#CONFZD_MSG				printf("Voice chip confused... trying again.\n");
		JSR	OUTSTRG
		PULA
		JMP	srTRAINWORD
*							}



********************************************************************************
*							void srClearPatterns(void)
*							{
srCLEAR		LDAA	#srRDSTATUS				outs(ReadStatus);
		JSR	OUTS
CLR_1		JSR	INST					while(inst() != ReadyForCommand);
		SUBA	#srRDYCMD
		BNE	CLR_1

		LDAA	#srWRINPUT
		JSR	OUTS
		LDAA	#srCMDRESET				outk(CmdReset);
		JSR	OUTK
		JSR	INK					ink();

		LDAA	#2000
CLR_2		NOP
		NOP
		SUBA	#1
		BNE	CLR_2


		LDAA	#srRDSTATUS					outs(ReadStatus);
		JSR	OUTS
		JSR	INST

		RTS
*							}






****************************************************************************
*							void MakeToast(void)
*							{
*								/* Check preconditions, like bread in toaster */
MAKETOAST	LDAA	#'M
		JSR	OUTA
		LDAA	#'T
		JSR	OUTA
		JSR	OUTCRLF

		JSR	CHECKBREAD
		BNE	MTOK
		LDAA	#vNOBREAD
		JSR	SAY
		RTS

*								/* Ask what toasting level */
MTOK		LDAA	#vHOWLIGHT
		JSR	SAY

MT0_1		JSR	WORDRECOG
		BNE	MT0_1

		JSR	GETWORD					/* Light toast? */
		SUBA	#wLIGHT
		BNE	MT0_2
		LDAA	#tLIGHT
		STAA	TOASTLEVEL
		LDAB	#vLIGHT
		BRA	MTCONT

MT0_2		ADDA	#wLIGHT					/* Dark toast? */
		SUBA	#wDARK
		BNE	MT0_3
		LDAA	#tDARK
		STAA	TOASTLEVEL
		LDAB	#vDARK
		BRA	MTCONT

MT0_3		LDAA	#tMEDIUM				/* Medium toast (default) */
		STAA	TOASTLEVEL
		LDAB	#vMEDIUM

MTCONT		PSHB
		LDAA	#vUSING
		JSR	SAY
		PULB
		TBA
		JSR	SAY

		LDAA	#vLOWERING				Say(vLowering);
		JSR	SAY

		JSR	LOWER

*								while(1) {
MT3		JSR	CHECKTEMP					if (TempThreshReached())
		BNE	MT4								break;


		JSR	WORDRECOG					if (!WordRecognized())
		BEQ	MT3							continue;

		JSR	GETWORD						if (GetWord() != wEnd)
		SUBA	#wEND
		BNE	MT3							continue;

		BRA	MT4						break;
*								}

MT4		LDAA	#vRAISING				Say(vRaising);
		JSR	SAY

		JSR	RAISE

		LDAA	#vDONE					Say(vDone);
		JSR	SAY

		RTS
*							}


****************************************************************************
*		***** CHRIS  Read bread sensor here and put the number of slices loaded
*		***** into accumulator A
*		For now, just lie and say that the toaster if fully loaded
CHECKBREAD	NOP
* Set the ADCTL to read PE1 (left eye)
		LDX	#REGBAS

*** Eye 1 seems to be misbehaving.  It is being software disabled for now.
*** Misbehaving manifests itself by causing the microC to start executing
*** instructions from anywhere within its memory, not nec. in PC order.
**Eye1		LDAA	#%10000001
**		STAA	ADCTL,X
**		JSR	GetVal

* ADR1 is one of 4 AD values we can use
**		LDAA	ADR1,X
* I hope this constant works!!!
**		SUBA	#$80
**		BLS	BreadIn1
**		CLRA
**		BRA	Eye2
**BreadIn1	LDAA	#1
**		PSHA

Eye2		LDAA	#%10000010
		STAA	ADCTL,X
		JSR	GetVal

* ADR1 is one of 4 AD values we can use
		LDAA	ADR1,X
* I hope this constant works!!!
		SUBA	#$80
		BLS	BreadIn2
		CLRA
**		PULA
		RTS
BreadIn2	NOP
**		PULA
		LDAA	#1
		RTS

****************************************************************************
*		***** CHRIS  Read the temperature IC.  If the temperature is
*		above some threshold, return 1 in accumulator A.  Else, return
*		0 in A.  For now, we'll lie and say that the temperature
*		has not been reached yet.
CHECKTEMP	NOP
		LDX	#REGBAS
* If counter is less than 25K, there's probably IC1 noise on the line.  Don't
* try to read the A/D port
		LDD	TMRREG,X
		SUBD	#25600
		BLO	CHKTEMP_END

* Set the ADCTL to read PE7
		LDX	#REGBAS
		LDAA	#%10000111
		STAA	ADCTL,X

		JSR	GetVal

* ADR1 is one of 4 AD values we can use
		LDAA	ADR1,X
		STAA	VOCPORT			For debugging, output the value to the ISD's bus (port B)
		SUBA	TOASTLEVEL
		BHS	Hot
		CLRA
		RTS
Hot		LDAA	#1
		RTS

CHKTEMP_END	CLRA
		RTS


***********************************************************
* Common ADC routine to wait until ADC is ready with value.
GetVal		NOP
		LDX	#REGBAS
WaitAD		LDAA	Option,X
		ANDA	#%10000000
		BEQ	WaitAD

ReadAD		LDAA	ADCTL,X
		ANDA	#%10000000
		BEQ	ReadAD
		RTS



****************************************************************************
*							void Say(int vIndex)
*							{
SAY		STAA	VOCPORT					outva(vIndex);	/* Output voice clip address */

		LDAA	#'S
		JSR	OUTA
		JSR	OUTCRLF

		LDX	#$1000					gPlayClip = 0;
		BCLR	isdENBAR,X isdENMASK

		LDAA	#20					/* The low pulse must be long enough for the chip to catch it */
S0		NOP
		NOP
		SUBA	#1
		BNE	S0

		BSET	isdENBAR,X isdENMASK			gPlayClip = 1;

		BRSET	isdEOM,X isdEOMMASK *			while (!gEOM);
		BRCLR	isdEOM,X isdEOMMASK *			while (gEOM);  /* low for 16 ms */


*								/* If the toaster's voice triggered
*								the speech chip, reset the recognition */
		LDAA	#srRDSTATUS				outs(srRdStatus);
		JSR	OUTS

		JSR	INST					st = inst();
		SUBA	#srRDYCMD				if (st != srRdyCmd)
		BNE	S1

		LDAA	srINITED				if (srInited)
		BEQ	S1

		JSR	BEGINRECOG

S1		RTS
*							}




*********************************************************************************
*							bool MotionDetected(void)
*							{
MOTDETECT	LDAA	#'O
*		JSR	OUTA
*		JSR	OUTCRLF

		LDAA	MOTPORT
		ANDA	#MOTMASK

		BEQ	MD1					if (gMotion) {
		LDAA	motLASTST					if (!gLastMotState) {
		BNE	MD2
		LDAA	#1							gLastMotState = 1;
		STAA	motLASTST
		RTS								return 1;
*									}
MD1		LDAA	motLASTST				} else if (gLastMotState) {
		BEQ	MD2
		CLRA
		STAA	motLASTST					gLastMotState = 0;
*									}
*								}

MD2		CLRA
		RTS						return 0;
*							}



**********************************************************************************
*							void RespondToMotion(void)
*							{
RESPONDMOT	LDAA	#'R
		JSR	OUTA
		LDAA	#'M
		JSR	OUTA
		JSR	OUTCRLF

		LDAA	#vLIKETOAST				Say(vLikeToast);
		JSR	SAY

RM1		JSR	WORDRECOG
		BNE	RM1

		JSR	GETWORD					/* Yes */
		SUBA	#wYES
		BNE	RM2
		JSR	MAKETOAST
		RTS

RM2		LDAA	#vOKAY
		JSR	SAY

		RTS
*							}



*********************************************************************************
INIT_BREAD	NOP

*		Set up IC1 to override microcontroller's grip on the servo
*		and raise the bread platform

*		These lines are needed to set up the IC1's ISR on the EVB
*		LDAA	#$7E			Jump (extended) opcode
*		STAA	PVIC1
*		LDX	#IC1ISR
*		STX	PVIC1+1

		LDX	#REGBAS

*		Set up OC3 (A[5]) to drop pulse at successful output compare
		BCLR	TMSK1,X %11111000
		BCLR	TFLG1,X %11111000	Writing a 1 clears the bits
		LDAA	#OC3_CTL
		STAA	TCTL1,X
		LDD	#PW_RAISE
		STD	TOC3,X

*		Set up OC1 to raise pulse at timer overflow
		LDAA	#OC3_OC1		OC1 affects OC3
		STAA	OC1M,X
		STAA	OC1D,X			OC1 writes a 1 to OC3
		CLRA
		CLRB
		STD	TOC1,X			Successful compare at CLK == 0

		BSET	TMSK1,X %00000100	IC1 ISR
		BSET	TFLG1,X %00000100	Clear IC1 flag (if any)
		LDAA	#%00110000		Capture on any edge
		STAA	TCTL2,X

*		Here's where we initialize the ADC.
		LDAA	#%10000000
		STAA	Option,X

		CLI				Enable interrupts

**		JSR	RAISE

		RTS


*********************************************************************************
RAISE		LDX	#REGBAS

**		LDAA	#OC3_CTL		Enable OC3
**		STAA	TCTL1,X

**		LDAA	#OC3_OC1		Enable OC1
**		STAA	OC1M,X

		LDD	#PW_RAISE		Raise bread platform
		STD	TOC3+REGBAS

**		JSR	PAUSEBREAD

**		CLRA
**		STAA	TCTL1,X			Disable OC3
**		STAA	OC1M,X			Disable OC1

		RTS

*********************************************************************************
LOWER		LDX	#REGBAS

**		LDAA	#OC3_CTL		Enable OC3
**		STAA	TCTL1,X

**		LDAA	#OC3_OC1		Enable OC1
**		STAA	OC1M,X

		LDD	#PW_LOWER
		STD	TOC3+REGBAS

**		JSR	PAUSEBREAD

**		CLRA
**		STAA	TCTL1,X			Disable OC3
**		STAA	OC1M,X			Disable OC1

		RTS


*********************************************************************************
IC1ISR		LDX	#REGBAS
		LDD	#PW_RAISE
		STD	TOC3,X

		BSET	TFLG1,X %00000100	Clear IC1 flag
		RTI


*********************************************************************************
PAUSEBREAD	LDAA	#BREAD_DLY
PB1		PSHA
		JSR	PAUSE32
		PULA
		DECA
		BNE	PB1

		RTS



****************************************************************************
INK		LDX	#$1000					Set direction bits to input
		BCLR	DDRC,X #KMASK
		LDAA	KBUS					Read data from K bus
		ANDA	#KMASK					Discard non-K bus data
		RTS


****************************************************************************
INST		JSR	INK					Status register is on K bus
	 	ANDA	#%00000011				Status bits are lower two
		RTS


****************************************************************************
OUTK		LDX	#$1000
		BSET	DDRC,X #KMASK
		PSHA						Save data to be written
		TSX
		LDAA	KBUS					Read current value
		ANDA	#KMASK^$FF				Save non-K bus part
		ORA	0,X					Add K-bus part
		STAA	KBUS					Write data

		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP


		PULA						Clean up stack
		RTS

****************************************************************************
OUTS		LDX	#$1000
		BSET	DDRC,X #SMASK

		LSLA						00000SSS -> 0000SSS0
		LSLA						0000SSS0 -> 000SSS00
		LSLA						000SSS00 -> 00SSS000
		LSLA						00SSS000 -> 0SSS0000

		PSHA						Save data to be written
		TSX

		LDAA	SBUS					Read current value
		ANDA	#SMASK^$FF				Save non-S bus part
		ORA	0,X					Add S-bus part
		STAA	SBUS					Write data

		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP
		NOP

		PULA						Clean up stack
		RTS





PAUSE		NOP
		NOP
		SUBA	#1
		BNE	PAUSE

		RTS


PAUSE32		LDAA	#$FFFF
P32		DECA
		BNE	P32

		RTS






vWORDS		FCB	vYES,vNO,vTOAST,vLIGHT,vMEDIUM,vDARK,vEND
srWORDS		FDB	srStrYES,srStrNO,srStrTOAST,srStrLIGHT,srStrMEDIUM,srStrDARK,srStrEND	static char* words[] = {
srStrYES		FCC	'yes'									"yes",
		FCB	$04
srStrNO		FCC	'no'									"no",
		FCB	$04
srStrTOAST	FCC	'toast'									"toast",
		FCB	$04
srStrLIGHT	FCC	'light'									"light",
		FCB	$04
srStrMEDIUM	FCC	'medium'									"medium",
		FCB	$04
srStrDARK	FCC	'dark'									"dark",
		FCB	$04
srStrEND		FCC	'end'									"end"
		FCB	$04
*											};


ISR_MSG1	FCC	'Train word: '
		FCB	$04
CONFZD_MSG	FCC	'Voice chip confused... returning to command loop.'
		FCB	$04

Testing Procedure

Operating Instructions

Once the green indicator lights and the toaster has said the word 'end', speak the word 'end' clearly to the toaster. Say the word exactly as you will say it later when you will ask for toast. In response, the toaster will ask you to say a word again, either the same word or another word. Each word will be said three times, and there are seven words. Once you have said the last word three times (the word 'yes'), the toaster enters its main loop.

To make toast
The toaster waits for either the user to say a word or for someone to walk by. If someone walks by, the toaster asks that person, "Would you like some toast?". If the person responds with 'no', the toaster will answer "Okay" and re-enter the main loop. Else, if the person responds with 'yes', the toaster will begin its toast making process. This is the same process as can be entered if the user asked the toaster for 'toast' from the main loop.

At the start of the toast-making process, the toaster checks to see if there is bread in the toaster. If there is no bread, the toaster asks, "What should I toast?" and returns to the main command loop. Else, the toaster asks, "How light?", and expects a response of either 'light', 'medium', or 'dark'. If the toaster cannot understand what is said, it will take 'medium' as the default.

After a toast level has been set, the toaster will lower the bread platform and begin toasting. While toasting, the user may abort the process by saying 'end'. If the user does not abort, the toaster will raise the bread platform when the desired temperature threshold is met. After raising the bread platform, the toaster announces that it is done, and re-enters the command loop.

One note about using this toaster: after making one slice of toast, the toaster becomes very hot. Subsequent slices of toast will not be prepared fully as the first slice because the temperature sensor watches for a threshold, as opposed to differential temperature change. Thus, it is usually a good idea to let the toaster cool off for about five minutes between making batches of toast.

Division of Labor

Corey's tasks
All of the VIS, including determining how the HM2007L speech recognition system worked. Versions 0.1 through 1.6e2 of TOS. Wirewrapping of the Main Controller Logic Board. Motion Sensor. Minor assembly of external logic box.

Chris' tasks
Bread and temperature sensors. Bread Platform motor. Procurement of and modifications to the toaster. TOS v1.4 and up. Major assembly of external logic box. Soldering of the SDS Controller Board.

1 The "logic box" is a metal box with the same footprint as the toaster. All circuitry is housed in this box to protect the circuitry from the extreme temperatures of the toaster's heating coils.

2 Of course, there is always the option of ordering food to be delivered. But there still is the same fundamental problem: how to do this without activating any more buttons or watching any more lights.

3 There are two modes of operation for the HM2007L: CPU mode and manual mode. In CPU mode, the chip obeys commands given on the I/O bus. In manual mode, a keypad is connected to the I/O bus, and the chip scans the keypad directly, obeying commands pressed by the user. The distributor has constructed a test bed for the HM2007L in manual mode, but has not done the same for CPU mode yet.

4 One degree Kelvin is equal to one degree Celcius. Zero K = -273 deg C.

5 We had originally mounted two photoresistors, but due to some bizarre A/D port trouble on the microcontroller, we were forced to deactivate one of the photoresistors.
